Shock Absorbing Products

Seismic isolations are crucial components of structure, They have nowbecome an established and accepted technology all over the worldespecially for sensitive buildings including hospitals or emergencyfacilities which need to give a full service after an earthquake.

图片名称

Shock Absorbing Products

Buckling Restrained Brace

Buckling restrained brace from Tiantie Building is a metal tension-compression type energy-dissipating shock-absorbing device. Buckling restrained brace can support the axial force of the full load-bearing surface regardless of tension or compression. as one of leading buckling restrained brace manufacturers, our buckling restrained brace has more stable mechanical properties compared with traditional support members. Under compression, buckling restrained brace shows the same hysteretic performance and excellent energy dissipation capacity as under tension. This characteristic allows it to not only provide the necessary lateral stiffness, but also add damping to the structure, reducing the risk of the structure in rare earthquakes. Vibration response under action.

Friction Dampers

When two contacting surfaces move relative to each other, Tiantie's advanced friction dampers generate a frictional force opposite to the direction of motion. This force effectively converts the building's vibrational energy into heat, dissipating it efficiently. Our state-of-the-art friction dampers are designed to enhance structural resilience and ensure optimal energy dissipation, providing superior protection and stability for your projects.

Mild Steel Damper

This steel damper from Tiantie Group is made of mild steel material, which has the characteristics of low yield strength, large ductility and good energy dissipation capacity, and accumulates plastic deformation through bending and shear deformation of mild steel, so as to achieve the purpose of dissipating structural energy.

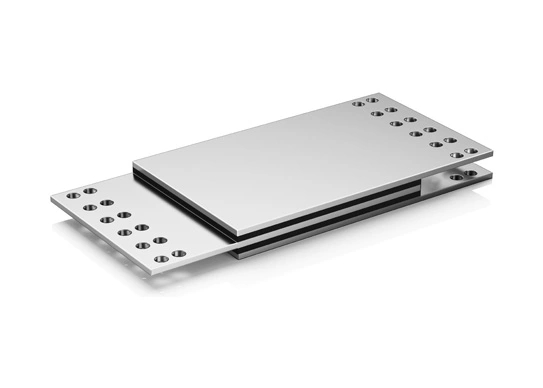

Viscoelastic Damper

Viscoelastic damper from Tiantie is a special viscous material that mainly relies on the hysteretic energy dissipation characteristics of viscoelastic materials to provide additional stiffness and damping to the structure and reduce the dynamic response of the structure to achieve the purpose of structural shock absorption (vibration). Tiantie's viscoelastic dampers in building absorb the energy generated by building vibration through shear deformation under the action of external force, convert it into heat energy, and ultimately reduces the building vibration response.

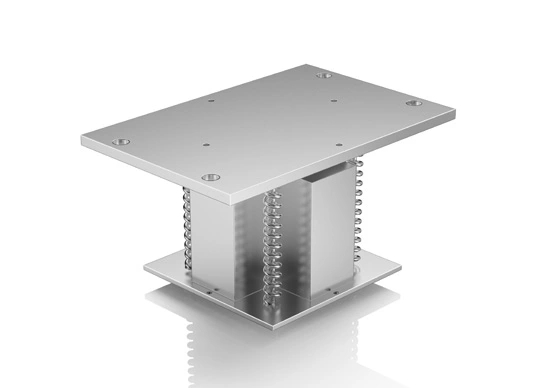

Tuned Mass Damper

The tuned mass damping (vibration) device from Tiantie is composed of mass, spring and damping system. When applied, the natural frequency of the device is adjusted near the frequency of the main structure to change the resonance characteristics of the structure, so as to achieve the effect of damping (vibration). Tuned mass dampers for buildings & structures from Tiantie are devices used to manage wind-induced vibrations in super high-rise buildings., reduce the acceleration and the sloshing amplitude of the building in the strong wind, and improve the comfort of the personnel in the building.

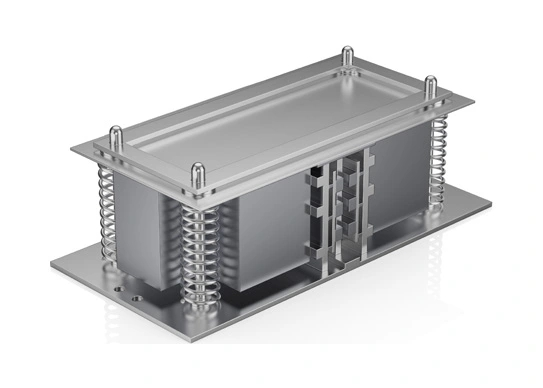

Eddy Current Dampers

The Eddy-current tuned mass damping device from Tiantie Group is composed of mass blocks, rigid connecting elements, elastic elements, linear bearing guide elements with less friction and eddy current as damping elements.

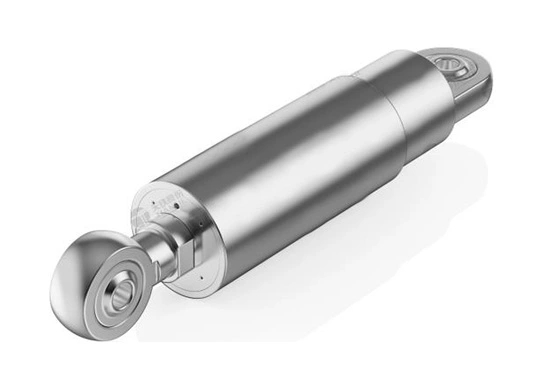

Viscous Dampers

Viscous damper(or seismic damper) from Tiantie is a kind of damping device that is composed of a high-strength metal cylinder, piston, guide rod, sealing element, and viscous damping fluid. When the cylinder and the piston move each other, a throttling damping force caused by the movement of the built-in viscous damping fluid can absorb and consume the impact energy of the earthquake on the building structure to the maximum extent and alleviate the impact and damage caused by the earthquake to the building structure.
图片名称

Types of Tiantie Seismic Isolation Devices

Seismic isolators for buildings play a crucial role in sustainable building practices. These innovative seismic isolators devices reduce the impact of seismic forces on buildings, enhancing their safety during earthquakes and reducing structural damage. By absorbing and dispersing energy, seismic isolators protect both the building and its occupants. Incorporating seismic base isolators into construction projects is an effective way to promote sustainability, as earthquake isolators ensure the durability and longevity of structures, minimizing the need for costly repairs or rebuilding. Embracing seismic isolators and shock absorbers for buildings is a smart choice for sustainable and resilient building design.

图片名称

FAQs of Shock Absorbers for Buildings

Can you design and produce according to the customers' requirements?

Yes, of course. We can design and produce as per your drawing (CAD or PDF) and samples.

What is your MOQ?

Changed from 100pcs to 10000pcs, as per different products. please contact our sales people for more details.

What is your packing?

Normal packing is firstly in a PP bag, then in a carton box. If pallet or the other special packing is required, charges will be negotiated separately.

What is your delivery time?

7 days for the samples and 15-45 days for the commercial orders. It depends on products.

What is your payment?

Samples can be accepted by TT, MoneyGram or Western Union in advance. The MP orders can be accepted by TT or LC.

How to ship the products to us?

For samples orders, we usually delivery by carrier like DHL, TNT, FEDEX etc.; for MP orders, we usually ship by air or sea.

Can we have our logo to be printed on the units or packaging?

Samples, only in neutral packing and no any Logo printing. For MP order, we can print on product & packaging with your authorized logo.
